    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Ask Lasest Price
    Brand Name : Welsonpower
    Model Number : ES50000
    Certification : TUV(IEC 62619, IEC 62040 pending)
    Price : USD1000-USD1300/SET
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 2000 sets per month
    Delivery Time : 15-30 working dyas
    • Product Details
    • Company Profile

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Server Rock multiple cabinets in parallel 5kwh Household 48V LiFePO4 Powerwall Off On Grid 100ah Battery
    multiple cabinets in parallel 5kWh 48V 100ah Lithium Ion Battery Pack for ESS Energy Storage Battery
    WELSON Energy Storage battery is suggested installing by skilled worker or electrician. A skilled worker is defined as a people who had been trained and qualified electrician or had all of the following skills and experience:

    Residential Energy Storage Solution
    Integrated with lithium-ion battery energy storage system and home energy management system,the solution is expandable on
    demand and has a variety of combinations.Flexible,efficient and customized products and services,it is friendly to home users to
    build a clean,independent and economic micro-grid.

    Specification
    Model
    Uhome-LFP 2400M
    Uhome-LFP 2500M
    Uhome-LFP 4800M
    Uhome-LFP 5000M
    Total energy(DC)
    2.4kWh
    2.5kWh
    4.8kWh
    5.1kWh
    Usable energy(DC)
    2.2kWh
    2.2kWh
    4.3kWh
    4.6kWh
    Norminal dis-/charge power
    1.5kw
    1.5kw
    2.88kw
    3.0kw
    Peak power(only discharge )
    3.0kw for 3sec
    3.0kw for 3sec
    6.0kw for 3sec
    6.0kw for 3sec
    Constant current(only discharge )
    40A
    40A
    70A
    80A
    Voltage
    42-54Vdc
    48-56Vdc
    42-54Vdc
    96-112Vdc
    Norminal voltage
    48Vdc
    51.2Vdc
    48Vdc
    51.2Vdc
    Norminal current
    30A
    30A
    60A
    60A
    Max.charge voltage
    53.75Vdc
    53.75Vdc
    53.75Vdc
    57.6Vdc
    Weight
    25kg
    27kg
    44kg
    45kg
    Dimension(mm)
    500*442*88mm
    500*442*88mm
    500*442*136mm
    500*442*135mm
    Max.recommended DOD
    90%
    Operating condition
    Indoor
    Operating temperature
    charge
    0-50ºC
    discharge -10-55ºC
    WIFI frequency range
    2400MHz--2483MHz
    Humidity
    <60%(No condensed water)
    Pollution degree
    3
    Over voltage category
    II
    Cooling type
    Natural cooling
    Case material
    Metal
    Color
    Black or Grey
    Installation
    Wall mounting / Ground Installation
    IP rating
    IP20
    Protective class
    I
    Max.number of parallel
    16
    Warranty
    10years
    Life span
    >15years
    Communication
    CAN/RS485
    Protection mode
    Dual hardware protection
    Battery protection
    Over-current/Over-voltage/Short circuit /Under voltage/Over temperature
    Safety
    CE TUV
    Hazardous material classification
    9
    Transportation
    UN38.3


    Key Feature

    >Digital Monitoring System APP
    >High Inverter Compatibility
    > Reliable LFP Cells
    >CANbus Standard Connection
    >Natural Cooling System
    >Assemblly freely in parallell up
    to 16P(48V326.4kWh)
    >10 Years Limited Warranty

    Communication compatible Inverter brand that have been tested and are supported
    SOLIS GROWATT DEYE MEGAREVO LUXPOWER KEHUA SOFAR INVT,.. Etc.


    WelsonPower 48V Lithium Battery System

    Brand Hybrid Inverter Battery Selection AC coupled Inverter
    Victron Quattro48/5000/70 VE.Bus
    Firmware version:V 2.61
    WelsonPower Multiplus-‖48/3000/35
    Firmware version:V 2.61
    LUXPOWER LXP-(3-5)K hybrid WelsonPower LXP-3600ACS
    SOLIS RHI-(3-5)k-48ES
    RHI-(3~6)k-48ES-5G
    WelsonPower RAI-3k-48ES-5G
    SERMATEC SMT-5K-TL-LV General
    KEHUA SPH3600-5000 General
    SOFARSOLAR HYD (3000-6000)-ES General ME3000
    GROWATT SPH3000-6000
    SPH5000
    SPF5000ES
    SPF5000TL
    General
    INVT BD (3-5) KTL
    BD (3-5) KTL-HS
    General BD3k-PS
    MEGAREVO R3KL1~R5KL1
    R3K6L1~R6KL1
    General 48V or
    51.2V
    DEYE SUN-(5~6)K-SG01LP1-US
    SUN-(7.6~8)K-SG01LP1-EU
    General
    Goodwe GW3648-EM
    GW5000ES
    Default25Ah
    Default50Ah
    GW5000S-BP
    AISWEI POW-VM5K-III ASW5000H-S
    Voltronic L1b
    SRNE HF4850S80-145 WelsonPower
    Schneider Conext-XWpro 8548 Be adjusting
    SMA SUNNY ISLAND 4.4M / 6.0H / 8.0H Be adjusting
    Senergy
    SE5000HB-1OO
    WelsonPower

    High Voltage system
    Brand
    Inverter type
    Firmware Version
    Battery selection
    Note
    Solis
    RHI-3P(5-10)kW-HVES-5G
    V04
    WelsonP
    GoodWe
    GW10K-ET
    030310
    Default25Ah
    Default50Ah
    Default100Ah
    Special BMS firmware
    MEGAREVO
    R(7~12)KH1
    ARM V1.01.35
    DSP V1.02.10
    Genera
    Sunways
    STH 4~12KTL-HT
    V1.00
    WelsonPower
    SOFARSOLAR
    HYD 10KTL-3PH
    HYD 20KTL-3PH
    General
    Growatt
    SPH 10000TL3 BH
    General
    SMA
    SBS5.0-10
    Be adjusting

    *: Data setting of inverter when battery working with COM. FREE mode
    Item Data Note
    Uhome-NCA
    6.8kWh/LV
    Uhome-LFP
    5.8kWh/LV
    Uhome-LFP
    2400
    Uhome-LFP
    5000
    Uhome-LFP
    10kWh/LV
    Uhome-LFP
    12.5kWh/LV
    Max. Charge Current 60A/0.5C 57A/0.5C 30A/0.5C
    60A/0.6C
    90A/0.45C
    120A/0.48C
    Max. Discharge Current 60A/0.5C 57A/0.5C 30A/0.5C
    60A/0.6C
    90A/0.45C
    120A/0.48C
    Rate d Voltage 48V 48V 51.2V
    51.2V
    51.2V
    51.2V
    Capacity 131Ah 120Ah 50Ah
    100Ah
    200Ah 250Ah
    Over Charge Voltage 58.0V 51.7V 57.6V
    57.6V
    57.6V 57.6V
    Low Voltage 42V 45.0V 48.0V
    48.0V
    48.0V 48.0V
    Float charge voltage 57.7V 51.5V 56.0V
    56.0V
    56.0V 56.0V If needed
    Over Temperature 45ºC 45ºC 45ºC 45ºC 45ºC 45ºC
    Low Temperature -10ºC 0 0 0 0 0
    Constant Charge Voltage 57.5V 51.5V 55.8V 55.8V 55.8V 55.8V
    Discharge End Voltage 43V 45V 48.0V 48.0V 48.0V 48.0V
    Functions of LiFePO4 Battery Pack BMS (Battery Management System):
    (1) Measurement of LiFePO4 battery terminal voltage
    (2) Energy balance between single LiFeP04 cells
    (3) Total battery voltage measurement
    (4) Total battery current measurement
    (5) SOC calculation: estimate the remaining power of the Lithium battery
    (6) Dynamically monitor the working state of the LiFePO4 battery pack : prevent over charging or over discharging
    (7) Real-time data display
    (8) Data recording and analysis: maintain the reliability and efficiency of the entire battery operation

    48V Powerwall Battery,5KWh Powerwall Battery ,5KWh Solar Powerwall

    51.2V 5KWh Rechargeable 48V Powerwall Battery For Home Solar System

    48V 51.2V 5KWh Powerwall Battery Rechargeable Li-ion Battery For Home Solar System

    48V 100Ah 5KWH/48V200Ah 10KWH Powerwall Battery

    Support parallels connection to max 200KWh.

    ​5 years warranty and 10 years lifespan design.

    OEM&ODM service and accept print your logo.

    Easily installation and operation ,just plug and play.

    More than 6000 times deep cycle as up to 90% DOD.

    With intelligent BMS system to optimize the performance.

    Compact design, LCD screen, convenient setting buttons and IP65.
    Optional for LCD display and communication (CAN/RS485/RS232).

    Max discharge current up to 150-200A, compatible with solar system.

    Powerwall Battery Specification

    Nominal Voltage 51.2V
    Nominal Capacity 100Ah
    Energy 5120Wh
    Internal Resistance ≤10mΩ
    Cycle Life >3000 cycles@1C 100% DOD
    Months Self Discharge <3%
    Efficiency of Charge 100%@0.5C
    Efficiency of Discharge 96-99% @1C
    Charge Cut-off Voltage 58.4±0.2V
    Charge Mode 0.2C to 58.4V, then 58.4V charge current to 0.02C(CC/CV)
    Recommend Charge Current 20A
    Max. Charge Current 100A
    Max. Continuous Discharge Current 100A
    Max. Pulse Current 200A(10S)
    Discharge Cut-off Voltage 40V
    Charge Temperature 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
    Discharge Temperature -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
    Storage Temperature 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
    Water Dust Resistance IP67
    Cell&Method 16S
    Package Metal Case
    Dimensions(in./mm.) 780*634*114mm
    Weight(lbs./kg.) 68kg

    Home Powerwall Images

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh HouseholdDiy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh HouseholdDiy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Compatible Inverter Brand

    Elite powerwall are support communication with most inverter brands such as Deye, Growatt, Kstar, Victron, Goodwe.

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Packaging & Shipping(UN383 certificated)

    Package: With high quality pearl wool, UN cartons / Plywood, plastic pallet.

    Shipping: By air, by sea, by express, railway transportation and so on.

    Package and shippment
    Shipping Hazardous Materials and Batteries Safely
    Lithium batteries are regulated as a hazardous material under the U.S. Department of transportation 's ( DOT ) Hazardous Materials Regulations (HMR; 49 C.F.R., Parts 171-180). The HMR apply to any material DOT determines can pose an unreasonable risk to health, safety , and property when transported in commerce . Lithium batteries must conform to all applicable HMR requirements when offered for transportation or transported by air, highway, rail , or water.
    Effective January 1, 2022, lithium cell and battery manufacturers and subsequent distributors of lithium cells and batteries manufactured
    after January 1, 2008 must make a lithium battery test summary available to others in the supply chain. The test summary includes
    a standardized set of elements that provide traceability and accountability to ensure that lithium cell and battery designs offered for
    transport meet UN 38.3 test requirements. We recommend the shipper check with the battery manufacturer or distributor to determine
    if a battery design has passed these tests, or obtain, if possible, the test summary. For additional information on test summaries, refer to PHMSA’s “Announcing New UN Requirement for Lithium Battery Test Summaries” outreach publicatio

    Product Advantages


    1. Professional technical team: WelsonPower’s R&D technical team has received more than 20 inventions and application patents.

    2. Unique pack technique: WelsonPower possesses special pack technique to batter protect the battery cell and increase the life span of the battery pack.

    3. Safety certification guarantee: Most batteries have been certificated according to international standard including CE, MSDS, UN38.3, UL etc..

    4. Professional sales team: WelsonPower possess well-trained sale team that help clients addressing difficulty meeting during battery selecting and battery using.

    5. Punctual delivery: WelsonPower has strict production plan to promise punctual delivery of the goods.

    6. Perfect after-sales service: WelsonPower has a professional QC team which applies strict quality control on production and provide perfect after-sales service to clients.

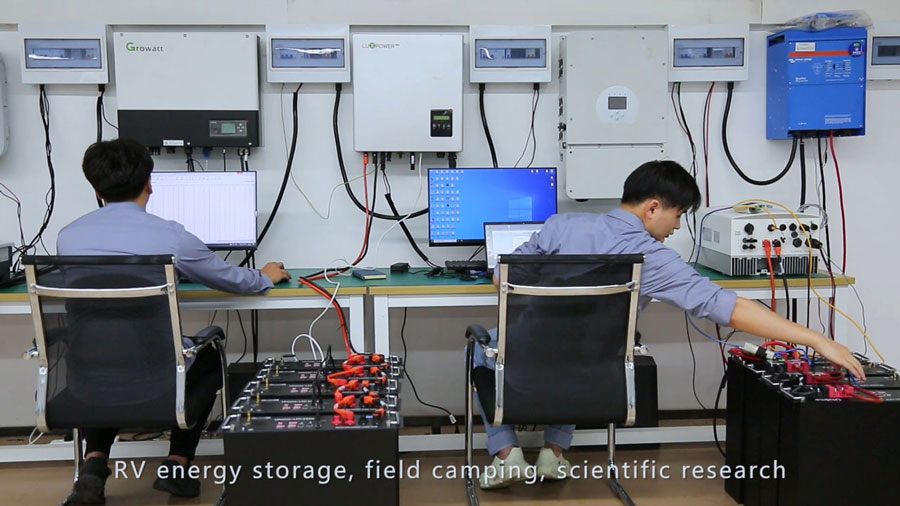

    Applications

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    We Are Real Factory!!!

    1 good quality, experience with famous brands

    2 OEM service for customized battery

    3 26650 cell(2000 times cycle 3 life.after 2000 tims,still keeps 80%of inital capacity

    4 Our certification is complete

    5 Sample order(<10 pcs) is available---helps you test the quality with "O"risk

    6 12 month wanrranty---replace one by one if there is any quality problem

    7 In the field of batteries Have more than 10 year professional experience

    Factory view

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh HouseholdDiy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh HouseholdDiy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh HouseholdDiy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

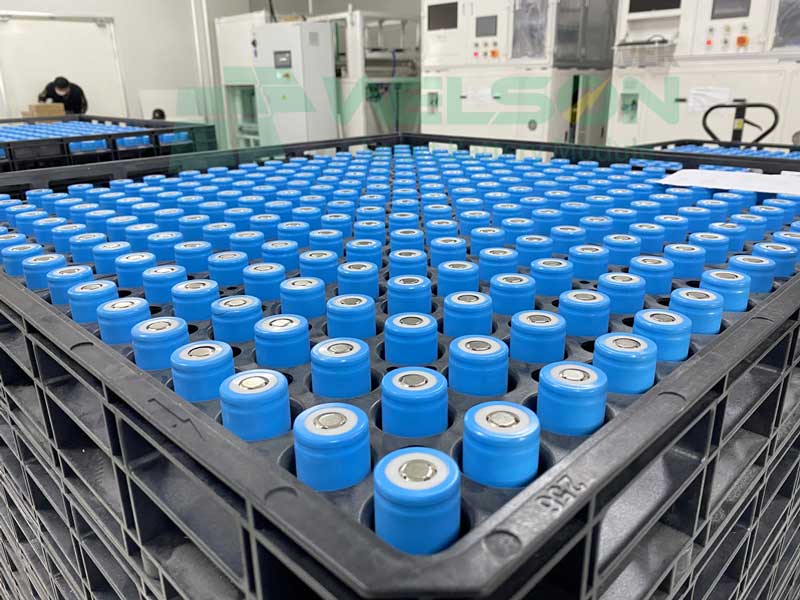

    Production Line

    Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household

    Packaging & Shipping

    Package:

    With high quality pearl wool, UN cartons / Plywood, plastic pallet.

    Shipping:

    By air, by sea, by express, railway transportation and so on.

    1. Shippment to USA:By sea+Express(DDP,Tax free)

    ETD:5-8 days
    ETA:25-35 days after sailing(This is the delivery time for most orders. Please wait patiently or contact us online)
    The tracking will be updated after pick up by local express.Usually it will take around 15-25 days after sailing.

    2. Shipment to EU:By railway+Express(DDP,Tax free).Except Switzerland,Romania


    ETD:5-8 days
    ETA:30-45 working days after shipping(This is the delivery time for most orders. Please wait patiently or contact us online)
    The tracking will be updated after pick up by local express.Usually it will take around 25-40 working days after shipping.

    3. We can't deliver the following address directly:


    USA: Military address and PO box address are not acceptable;

    Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.
    Portugal: Azores and Madeira
    Spain:Canary Islands, hueda and melilia
    Russia: Kamchatka Peninsula
    Other:Some remote areas not listed,Please provide shipping address and zip code to to us to check.

    FAQ

    Q1: What is your MOQ?
    A1: Generally speaking, our MOQ is 100 pieces, which varies with different products.


    Q2: Are these batteries brand new?
    A2: Yes, all of these batteries we provide are brand new


    Q3: Are the cells I bought balanced?
    A3: we know the importance of maintaining the consistency of each cell in the battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage, and capacity of cells are completely matched and balanced before delivery. This process is very necessary.


    Q4:: I am a distributor. Can I cooperate with the battery warehouse for a long time?
    A4: Yes, Individual pricing for large scale projects and wholesale demand is available

    About US

    WelsonPower

    Welson Battery Company, a world leader in deep cycle battery technology, has been at the forefront of superior deep cycle battery development since 2003. The Deep Cycle Flooded LFP Battery is specifically designed for use in golf carts, solar applications and more. Welson's decades of experience, ongoing research, and commitment to quality are evident in every deep cycle battery they produce.
    The WelsonPower advantage lies in their ability to provide dependable, long-lasting, continuous power and exceptional value. This is true for every deep cycle battery with the distinct nice case. Although flooded lead-acid batteries have the longest history of use in solar electric applications and are still utilized in most stand-alone alternative energy systems, they do require regular maintenance in the form of watering, equalizing charges, and keeping the top and terminals clean, in order to reap the benefits of longer lifespan and lower cost per amp-hour.

    Newest technology,new idea,heard-working and honest people.

    Focus on lithium rechargeable battery,BMS,Balancer,charger and relative products.

    Main application:electric bicycle,scooter,motorhome,AGV,solar/wind system,Energy storage system,truck and so on.s:

    We promise"real"lithium capacity

    We promise“100%“ refund for any quality problem

    We promise”100%“ replacement for any shipping damage

    We promise lifetime fast technical supportCustomers‘ satisfaction is our endless pursuing.

    Quality Diy Powerwall Lifepo4 Battery 48V 100ah Server Rock Multiple Cabinets In Parallel 5kwh Household for sale
    Inquiry Cart 0
    Send your message to this supplier

    *From:
    *To: Welson Power Technology (wuxi) co.,ltd
    *Subject:
    *Message:
    Characters Remaining: (0/3000)
